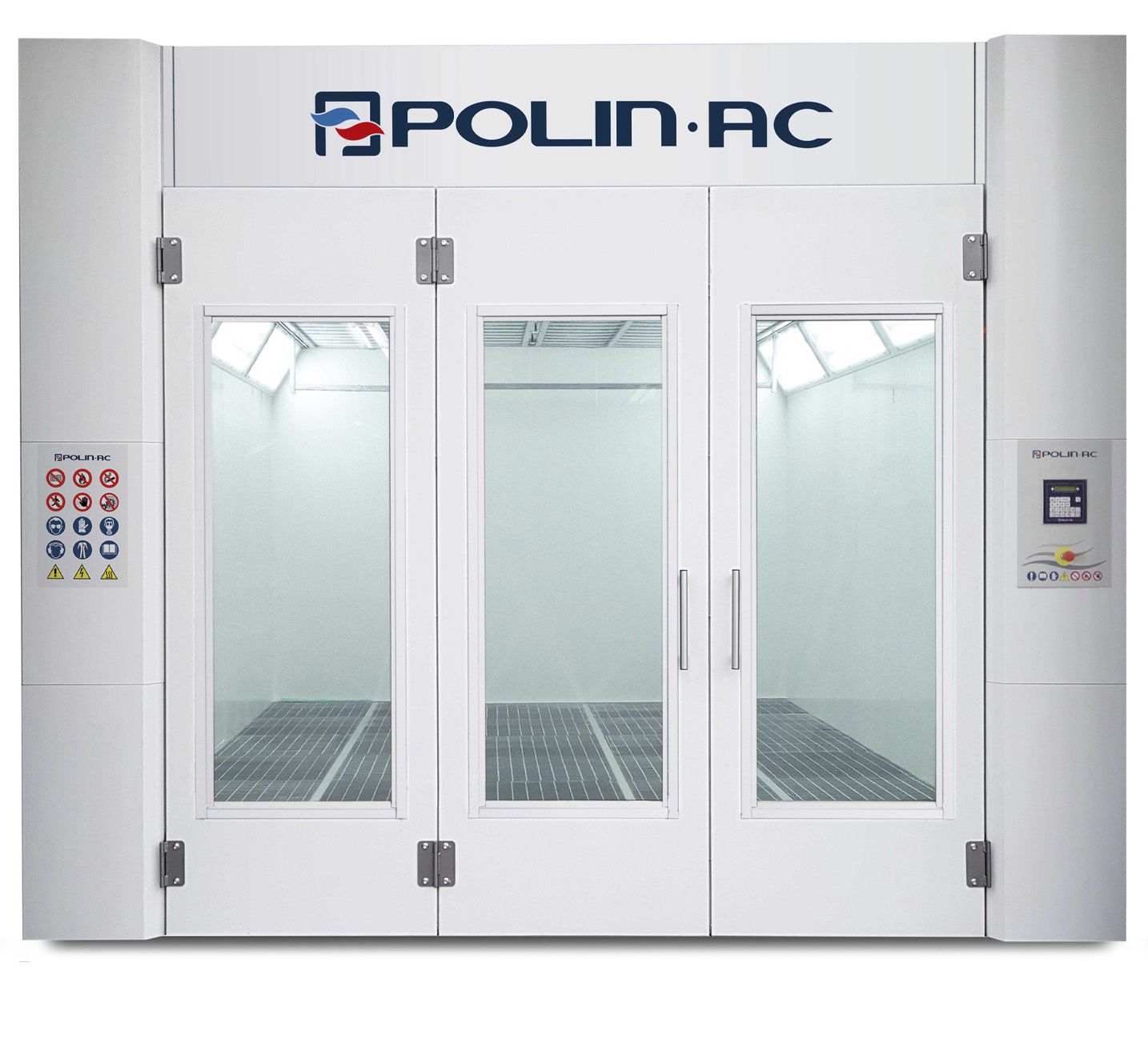

Prima Spray Booth
Balanced and enveloping air flow for the best working conditions. The combined use of direct fired burner and inverter technology result in high energy savings.
Main technical data
Size
22
Burner
Midco (usa)
Style
Downdraft
Basement
10000lb
Prima Spray Booth
Balanced and enveloping air flow for the best working conditions. The combined use of direct fired burner and inverter technology result in high energy savings.
Designed and manufactured in Italy
The equipment is designed, manufactured, and tested in Italy. It fully complies with the highest European quality standards.
2 years unlimited warranty
We provide a two-year unlimited warranty on our equipment with full follow-up support during and after the warranty period.
U.S. certified for compliance and safety
The equipment is designed, manufactured, and tested in Italy. It fully complies with the highest European quality standards.
Technical specifications:
Main technical data
Spec
Parameter
Size
22
Burner
Midco (usa)
Style
Downdraft
Basement
10000lb
All technical data
Spec
Parameter
Size
22
Burner
Midco (usa)
Style
Downdraft
Control panel
Led 10"
Basement
10000lb
Turbine
24000 cfm direct drive
Motors (intake, exhaust)
15 hp each
Spray and bake temperature control
Automatic
Wall insulation
2,5" wool
Doors
Three-door bi-fold front doors
Lights
16 side wall lights, 4 x 4 light fixtures, all led lights, 6500k color, upper plenum with 58 hip lights w/ daylight led lights
Show more
Designed and manufactured in Italy
The equipment is designed, manufactured, and tested in Italy. It fully complies with the highest European quality standards.
2 years unlimited warranty
We provide a two-year unlimited warranty on our equipment with full follow-up support during and after the warranty period.
U.S. certified for compliance and safety
The equipment is designed, manufactured, and tested in Italy. It fully complies with the highest European quality standards.
Technical specifications:
Main technical data
Spec
Parameter
Size
22
Burner
Midco (usa)
Style
Downdraft
Basement
10000lb
All technical data
Spec
Parameter
Size
22
Burner
Midco (usa)
Style
Downdraft
Control panel
Led 10"
Basement
10000lb
Turbine
24000 cfm direct drive
Motors (intake, exhaust)
15 hp each
Spray and bake temperature control
Automatic
Wall insulation
2,5" wool
Doors
Three-door bi-fold front doors
Lights
16 side wall lights, 4 x 4 light fixtures, all led lights, 6500k color, upper plenum with 58 hip lights w/ daylight led lights
Show more
Polin-AC - Advanced air technology
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Polin-AC - Advanced air technology
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Energy savings of over 50%
Use of direct fired burner and inverter technology result in high energy savings
Why choose our spray booths

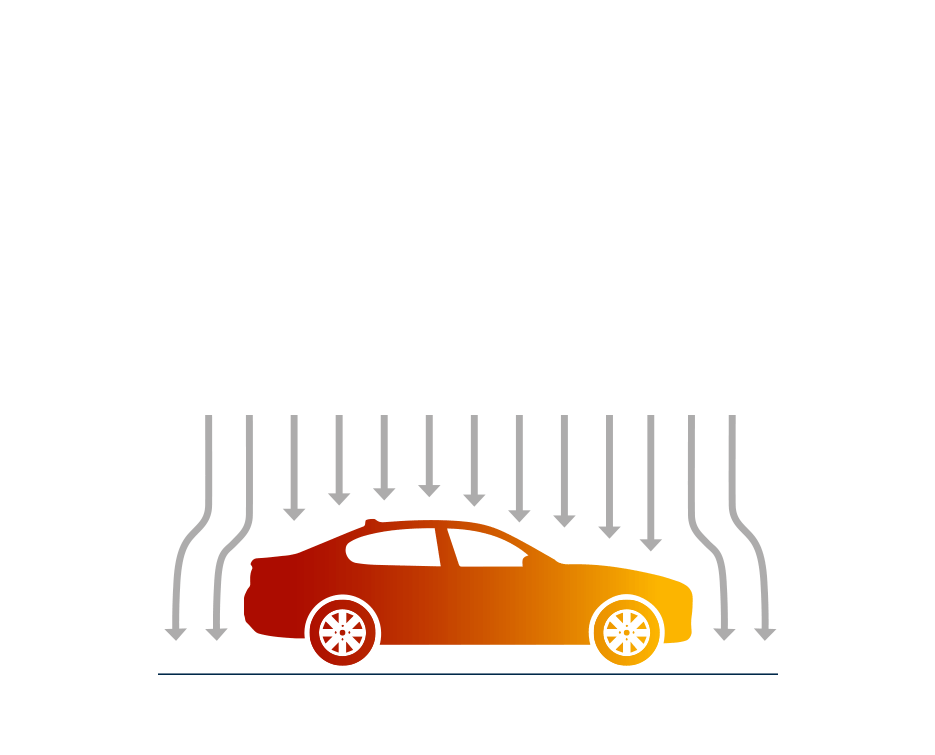

Optimal ventilation
Balanced and enveloping air flow for the best working conditions.

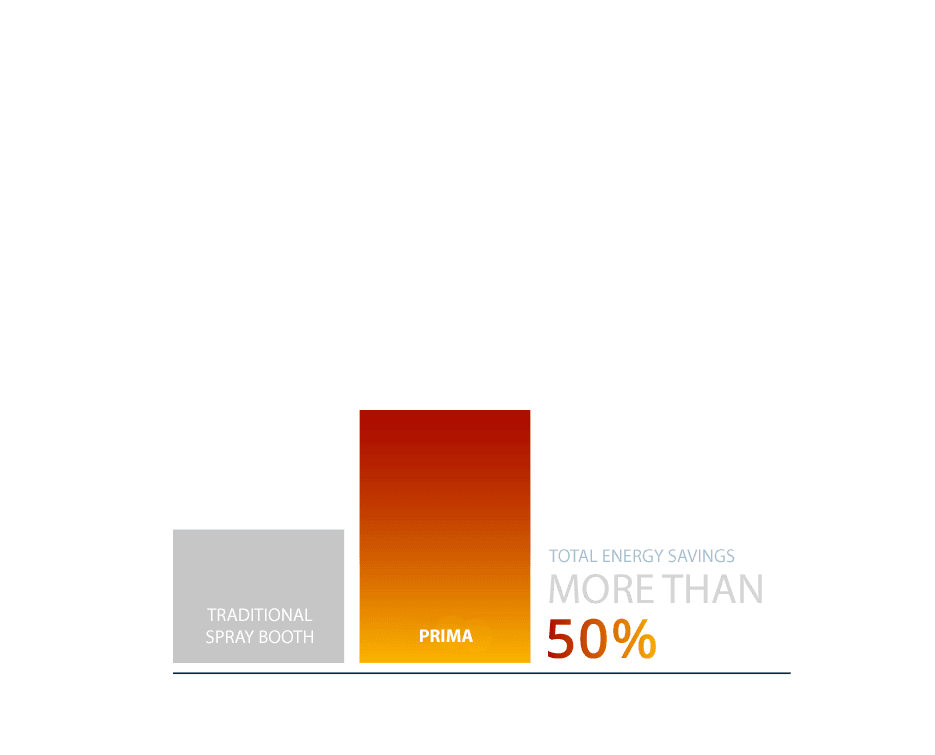

Energy saving
The combined use of direct fired burner and inverter technology result in high energy savings.

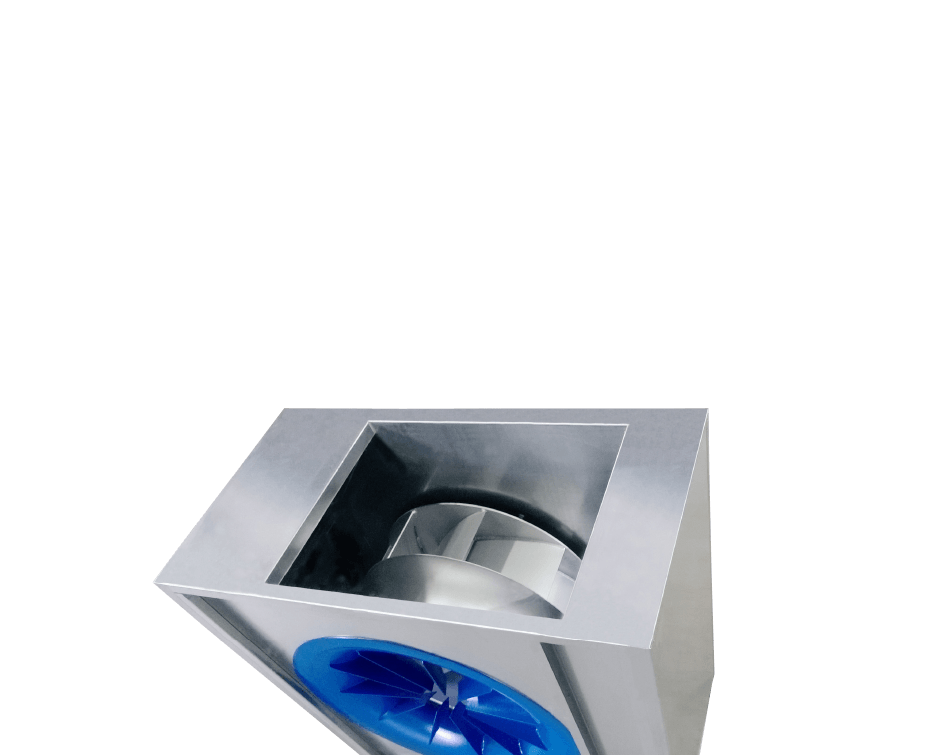

High efficiency ventilation system
Backward inclined turbines directly coupled to the motors guarantee high performance and balanced air flow in the booth.

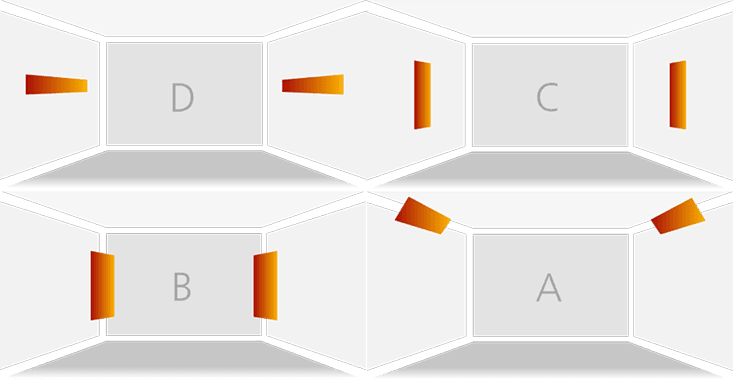

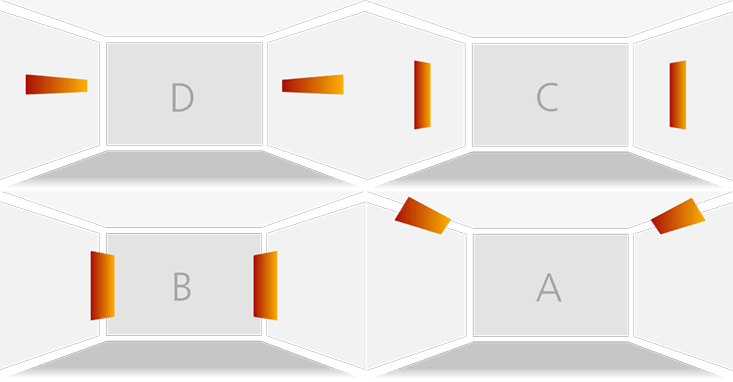

Illumination according to your preference
Three different lighting solutions for an abundant amount of diffused light in the cabin.

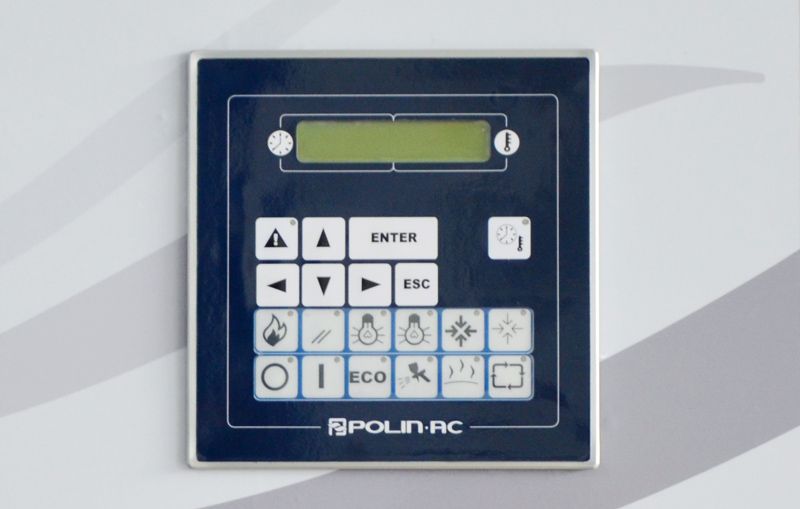

Ac plus
Operator interface control panel with soft-touch membrane keyboard allows for the complete control of all functions so as to facilitate and optimize the production flow and the work of the operator.
provided with a software package completely developed by polin-ac, it facilitates the control of all work phases, indicating time, temperature and signaling eventual malfunctions.
ergonomic design and the user-friendly symbols make it immediately easy to use.

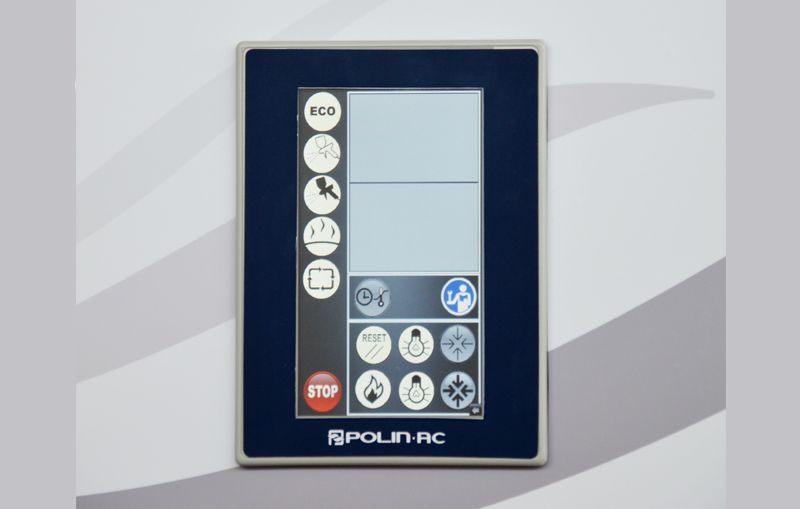

Ac touch
Ac touch is the control panel with 7” color touch-screen operator interface. the touch screen is equipped with an easy and intuitive advanced software which gives the operator the possibility to manage all the functions that control the booth in each single working phase.
ac touch also allows the operator to plan filter replacement and optimize energy consumption thanks to pre-set programs that can be customized by the operator.

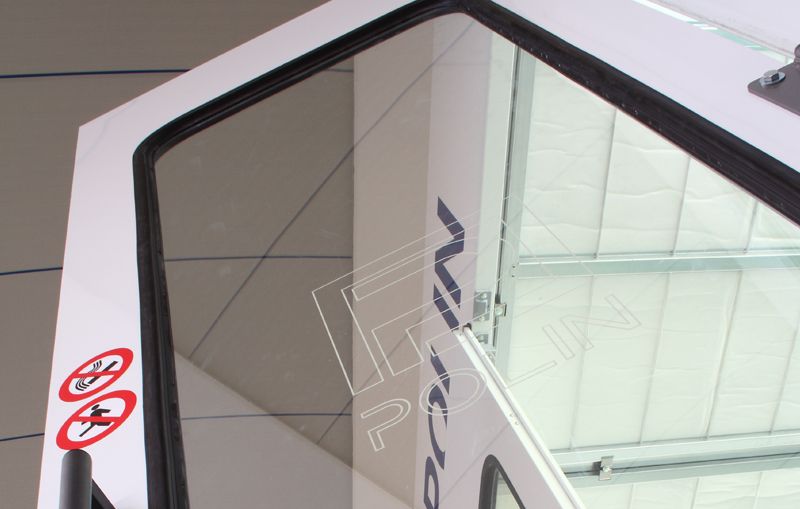

Large tempered glasses on the entry doors
A solution that, apart from the evident aesthetic value, allows for a better field of vision between the inside and outside of the booth, so as to have control of the production phases at a glance.

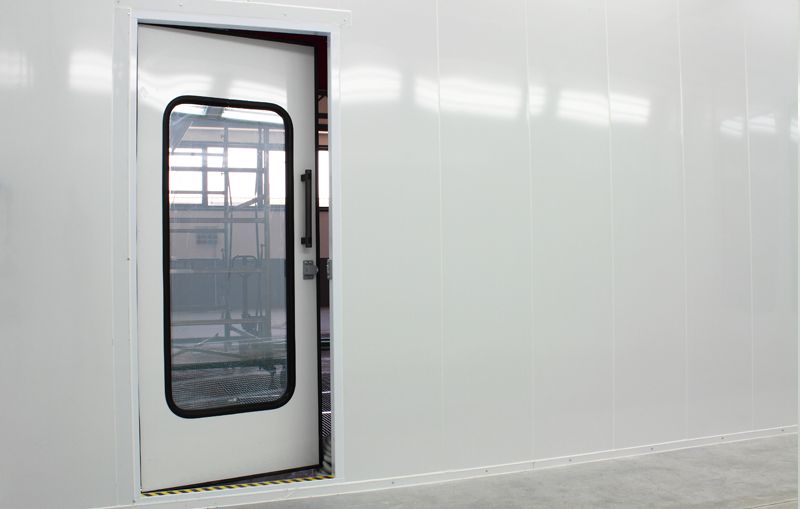

Service door with push exit
The service door, positioned in accordance to the norms, is equipped with snap-action closure and push exit (optional).

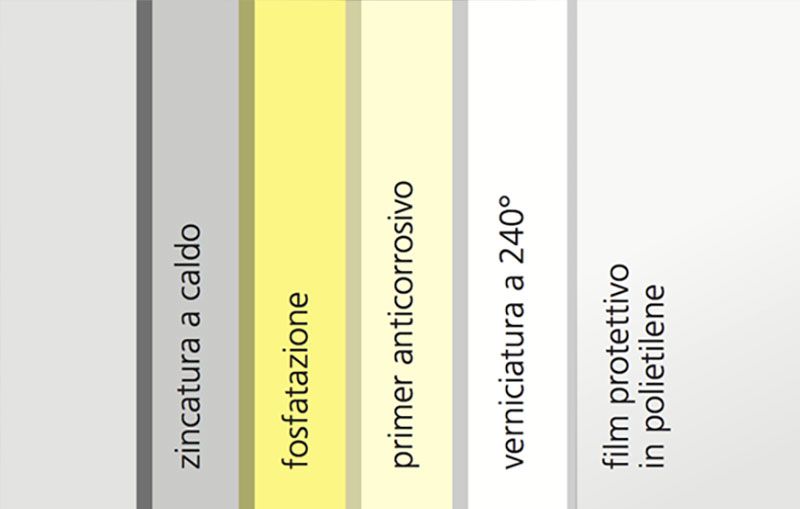

Anti-corrosion galvanized and pre-painted panels
The panels are subjected to a specific treat-ment which guarantees long term durability. the surface undergoes 5 different treatments: hot-dip galvanizing, phosphating, anti-corrosion priming, painting at 240°c and final application of a protective polyethylene film.

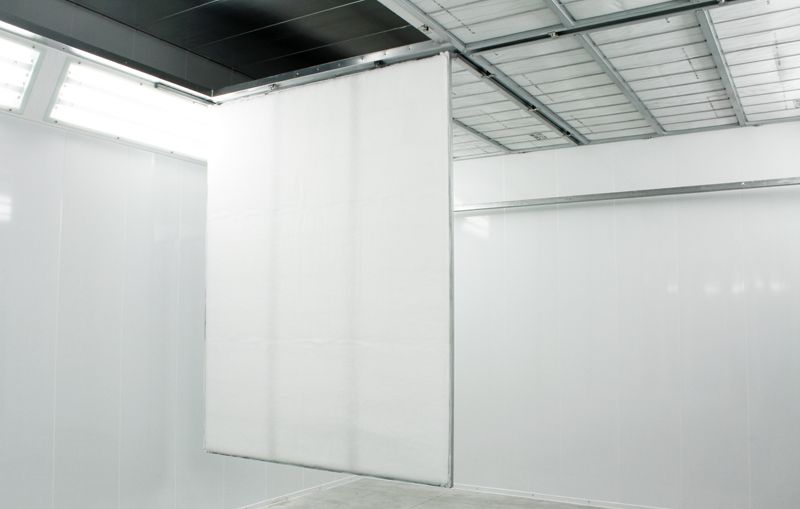

Easy replacement and maintenance of the filtering plenum
Replacement of the filters or cleaning of the plenum can be easily carried out by a single operator. the particular coupling system of the filter frame allows it to swing down in vertical position while remaining supported from above.

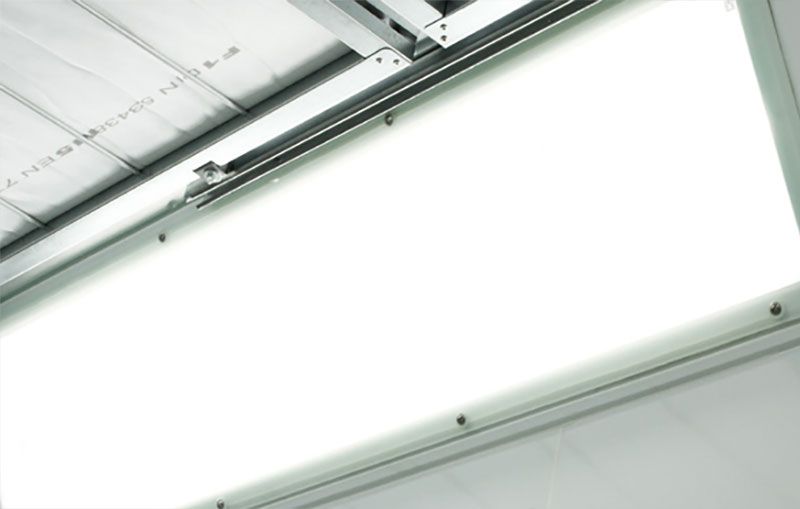

Lighting system with fluorescent or led light tubes
The reflectors have a large reflecting surface and are available with a choice of fluorescent or led light tubes.

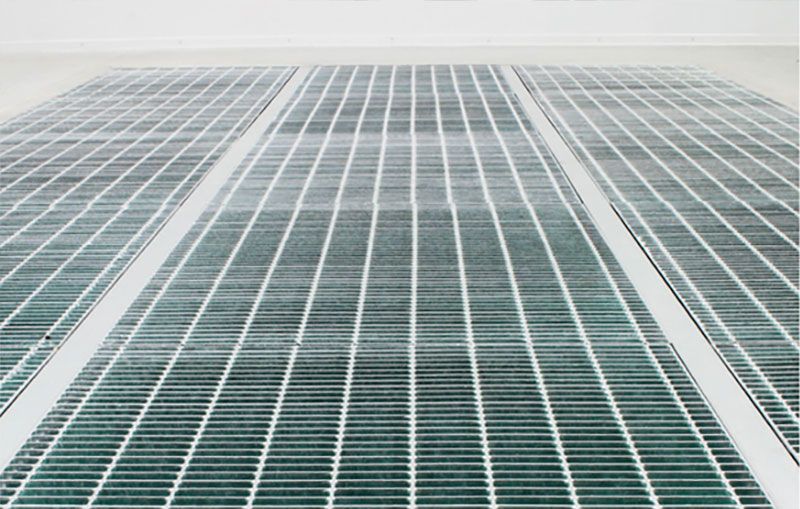

Galvanized floor grates
The standard grates of the floor are galvanized and extremely sturdy. higher load capacity grids are available according to the customer’s requests.

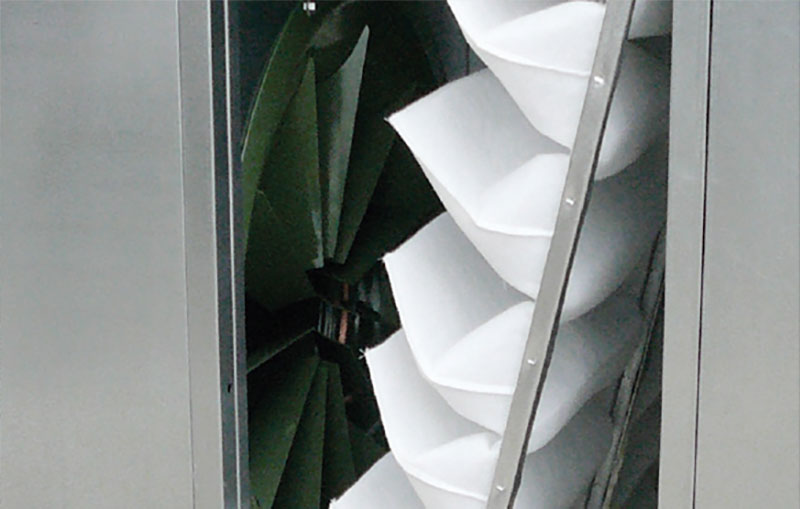

Multi pocket filtering system of the ventilating units
Incoming and outgoing air quality is addressed by means of multi pocket filtration systems that contribute to a dust-free environment inside the spray booth and a paint free environment outside. standard dimensions and ease of replacement are features that are appreciated by all service personnel.

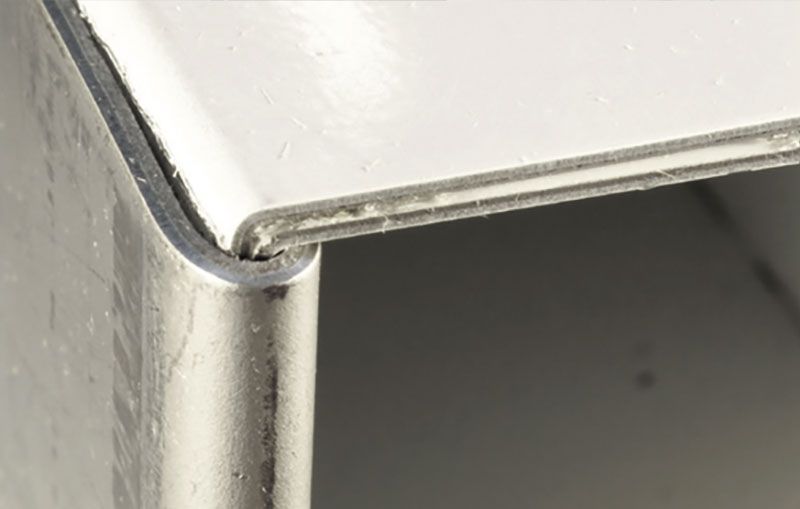

High stability joint between the panels
The panels are constructed in such a way to create a box-like joint when they are coupled together. the entire construction can be rapidly assembled with a system which guarantees solidity, uniformity and high-stability of the booth.
Why choose our spray booths
Optimal ventilation
Balanced and enveloping air flow for the best working conditions.
Energy saving
The combined use of direct fired burner and inverter technology result in high energy savings.
High efficiency ventilation system
Backward inclined turbines directly coupled to the motors guarantee high performance and balanced air flow in the booth.
Illumination according to your preference
Three different lighting solutions for an abundant amount of diffused light in the cabin.
Ac plus
Operator interface control panel with soft-touch membrane keyboard allows for the complete control of all functions so as to facilitate and optimize the production flow and the work of the operator.
provided with a software package completely developed by polin-ac, it facilitates the control of all work phases, indicating time, temperature and signaling eventual malfunctions.
ergonomic design and the user-friendly symbols make it immediately easy to use.
Ac touch
Ac touch is the control panel with 7” color touch-screen operator interface. the touch screen is equipped with an easy and intuitive advanced software which gives the operator the possibility to manage all the functions that control the booth in each single working phase.
ac touch also allows the operator to plan filter replacement and optimize energy consumption thanks to pre-set programs that can be customized by the operator.
Large tempered glasses on the entry doors
A solution that, apart from the evident aesthetic value, allows for a better field of vision between the inside and outside of the booth, so as to have control of the production phases at a glance.
Service door with push exit
The service door, positioned in accordance to the norms, is equipped with snap-action closure and push exit (optional).
Anti-corrosion galvanized and pre-painted panels
The panels are subjected to a specific treat-ment which guarantees long term durability. the surface undergoes 5 different treatments: hot-dip galvanizing, phosphating, anti-corrosion priming, painting at 240°c and final application of a protective polyethylene film.
Easy replacement and maintenance of the filtering plenum
Replacement of the filters or cleaning of the plenum can be easily carried out by a single operator. the particular coupling system of the filter frame allows it to swing down in vertical position while remaining supported from above.
Lighting system with fluorescent or led light tubes
The reflectors have a large reflecting surface and are available with a choice of fluorescent or led light tubes.
Galvanized floor grates
The standard grates of the floor are galvanized and extremely sturdy. higher load capacity grids are available according to the customer’s requests.
Multi pocket filtering system of the ventilating units
Incoming and outgoing air quality is addressed by means of multi pocket filtration systems that contribute to a dust-free environment inside the spray booth and a paint free environment outside. standard dimensions and ease of replacement are features that are appreciated by all service personnel.
High stability joint between the panels
The panels are constructed in such a way to create a box-like joint when they are coupled together. the entire construction can be rapidly assembled with a system which guarantees solidity, uniformity and high-stability of the booth.
